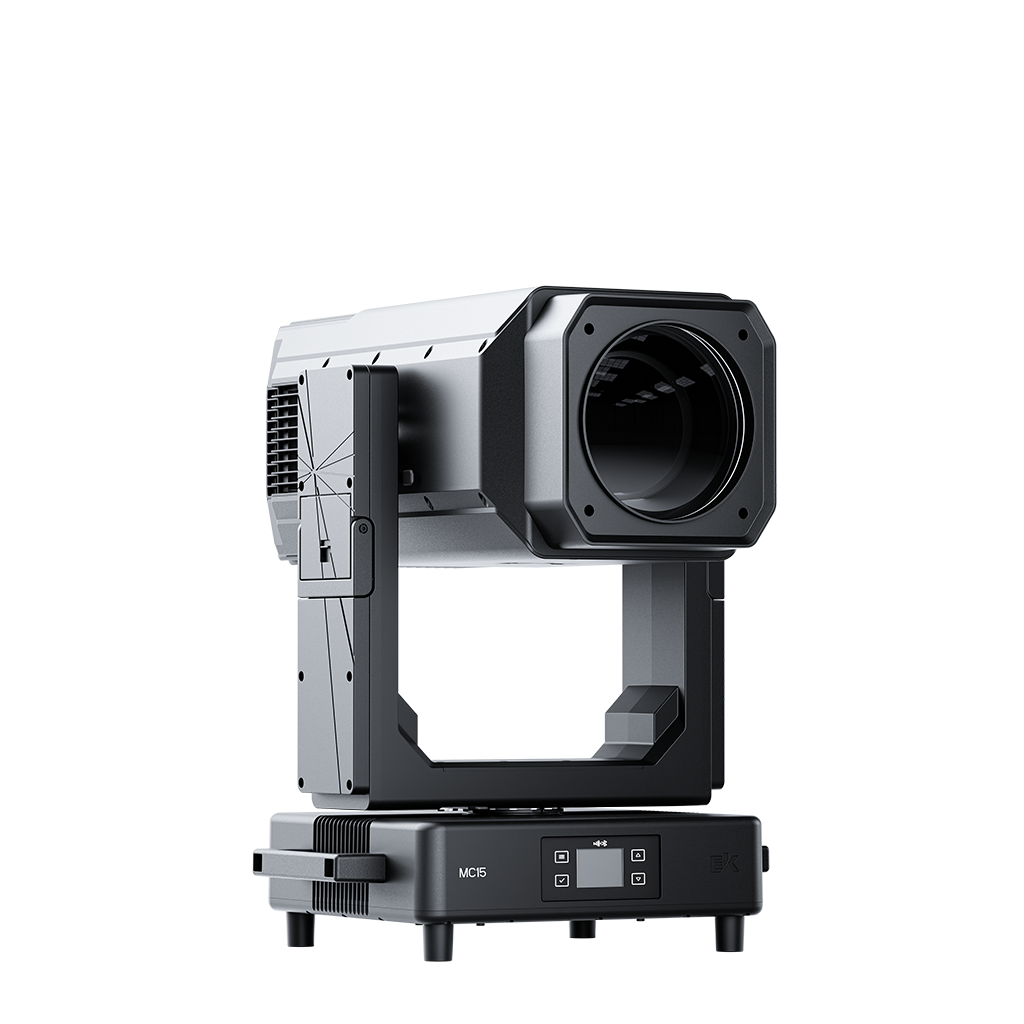

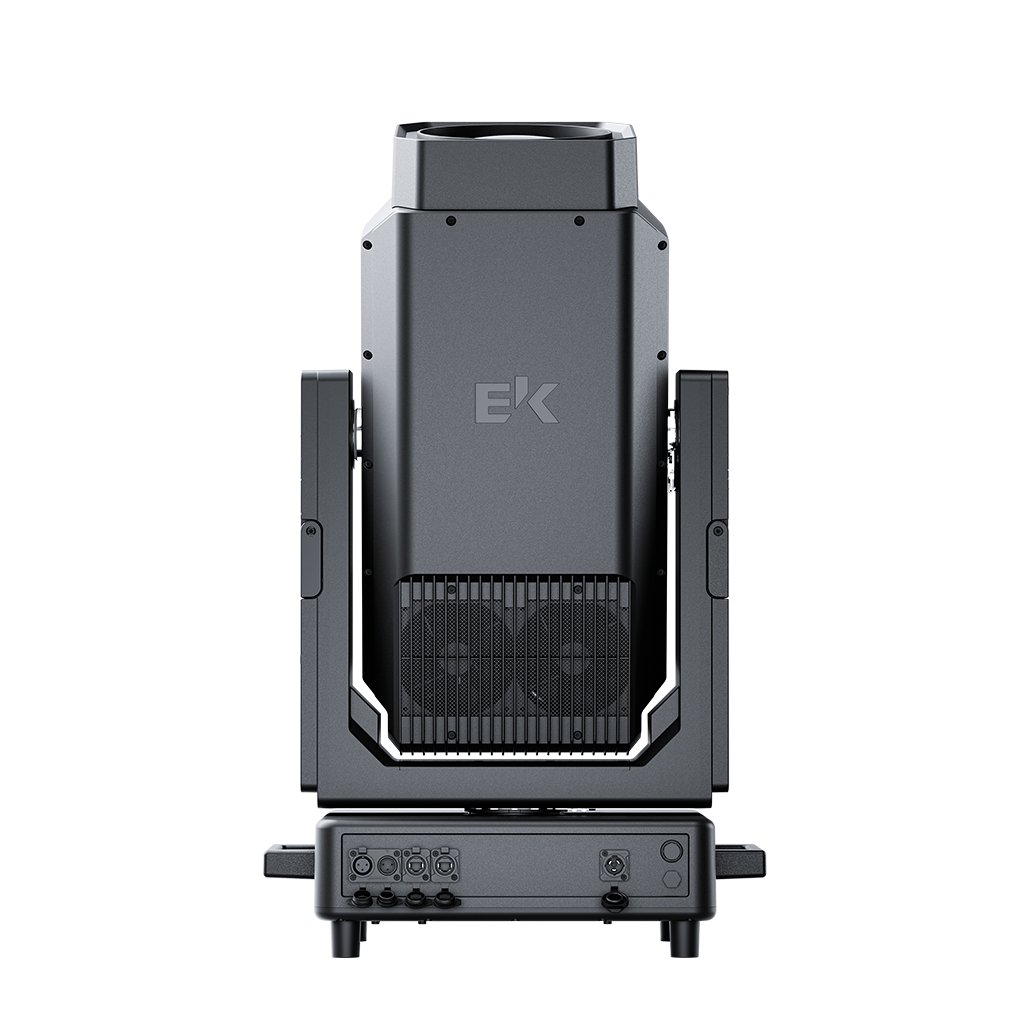

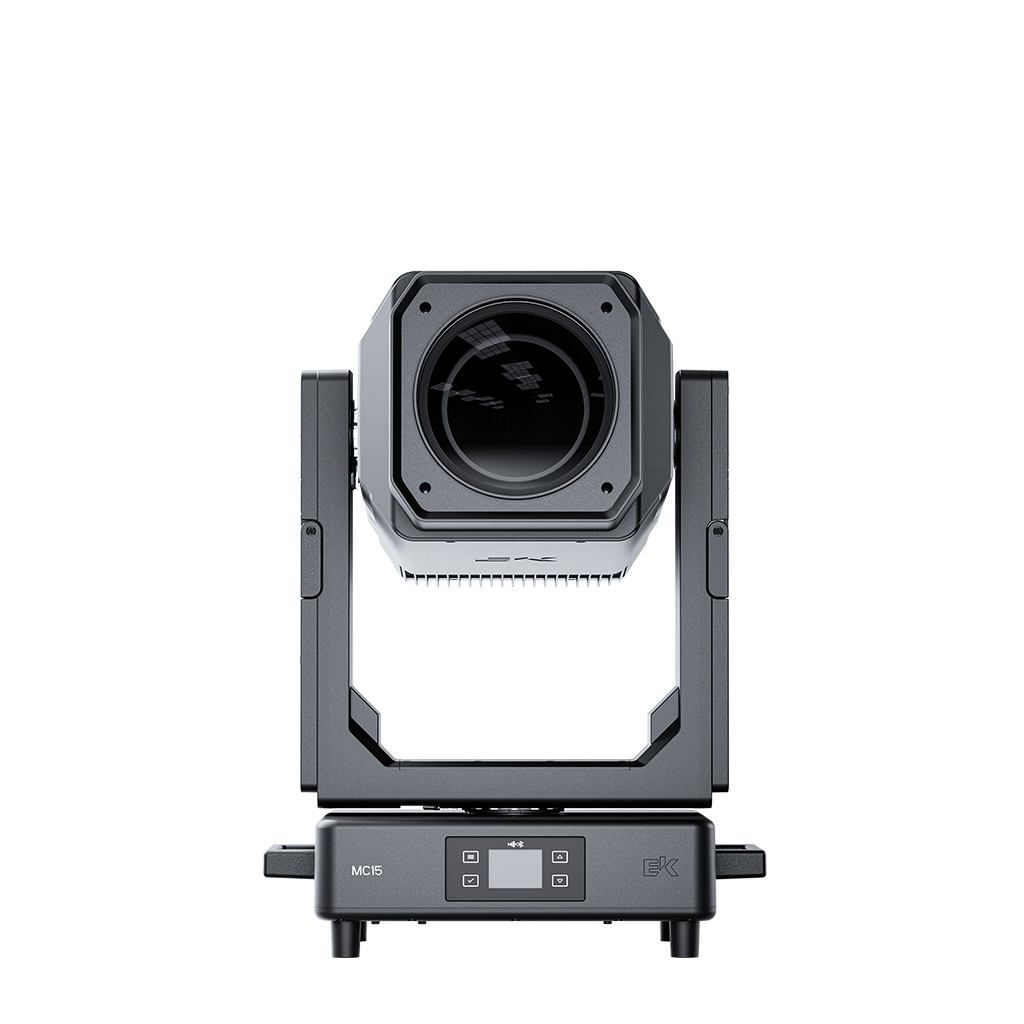

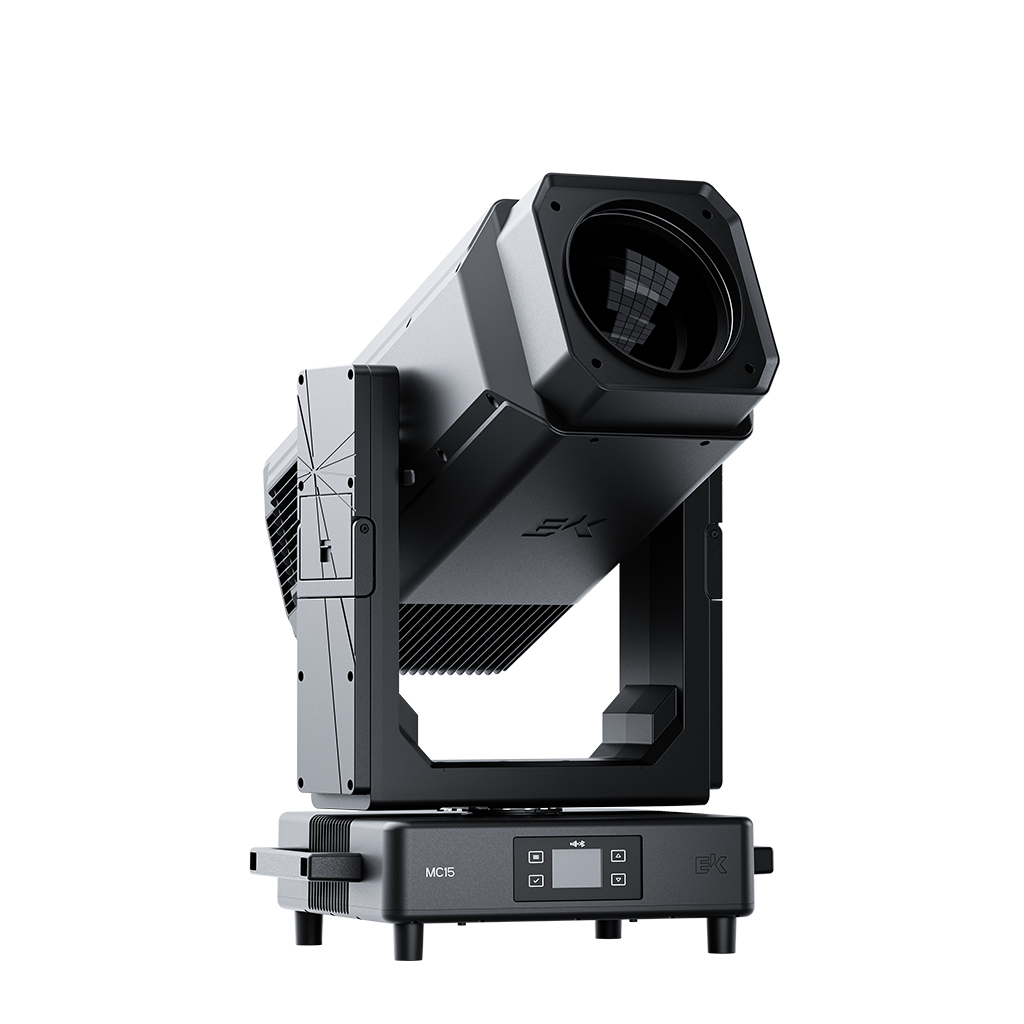

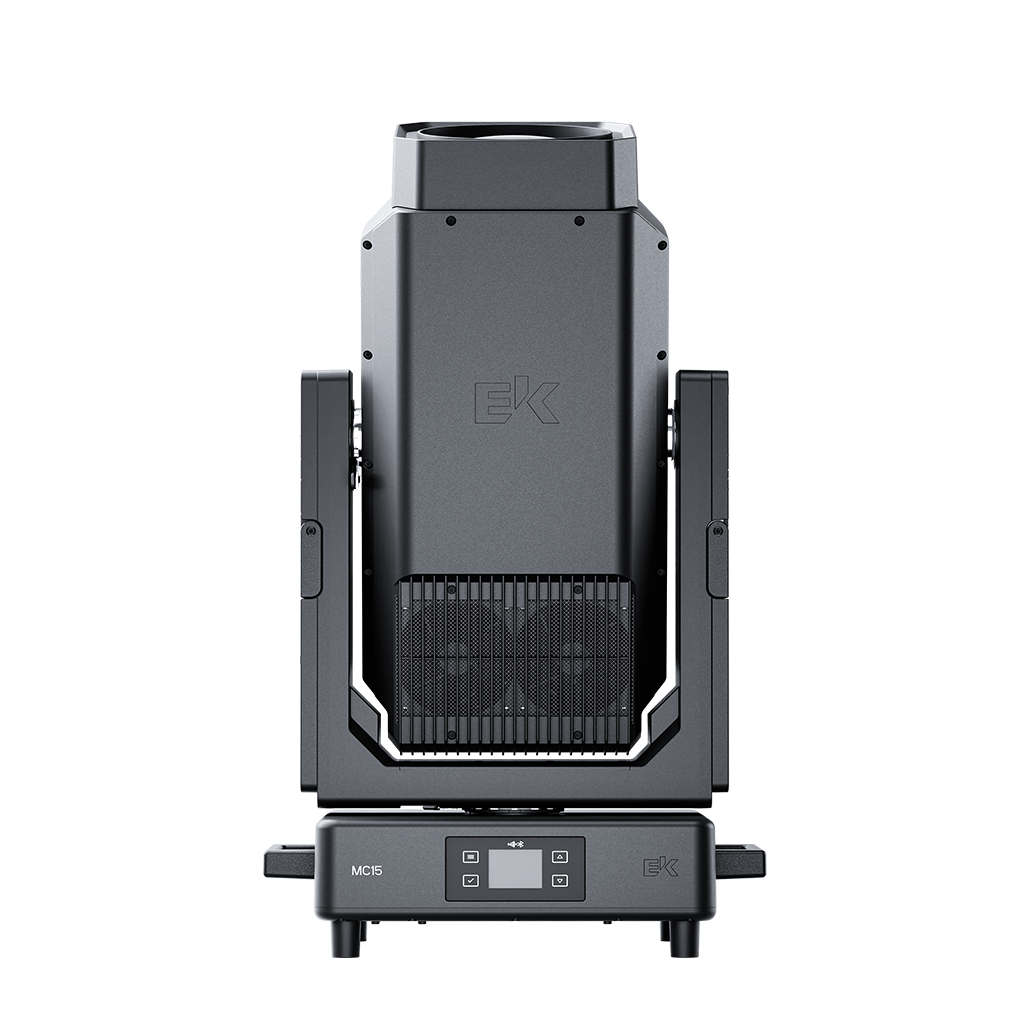

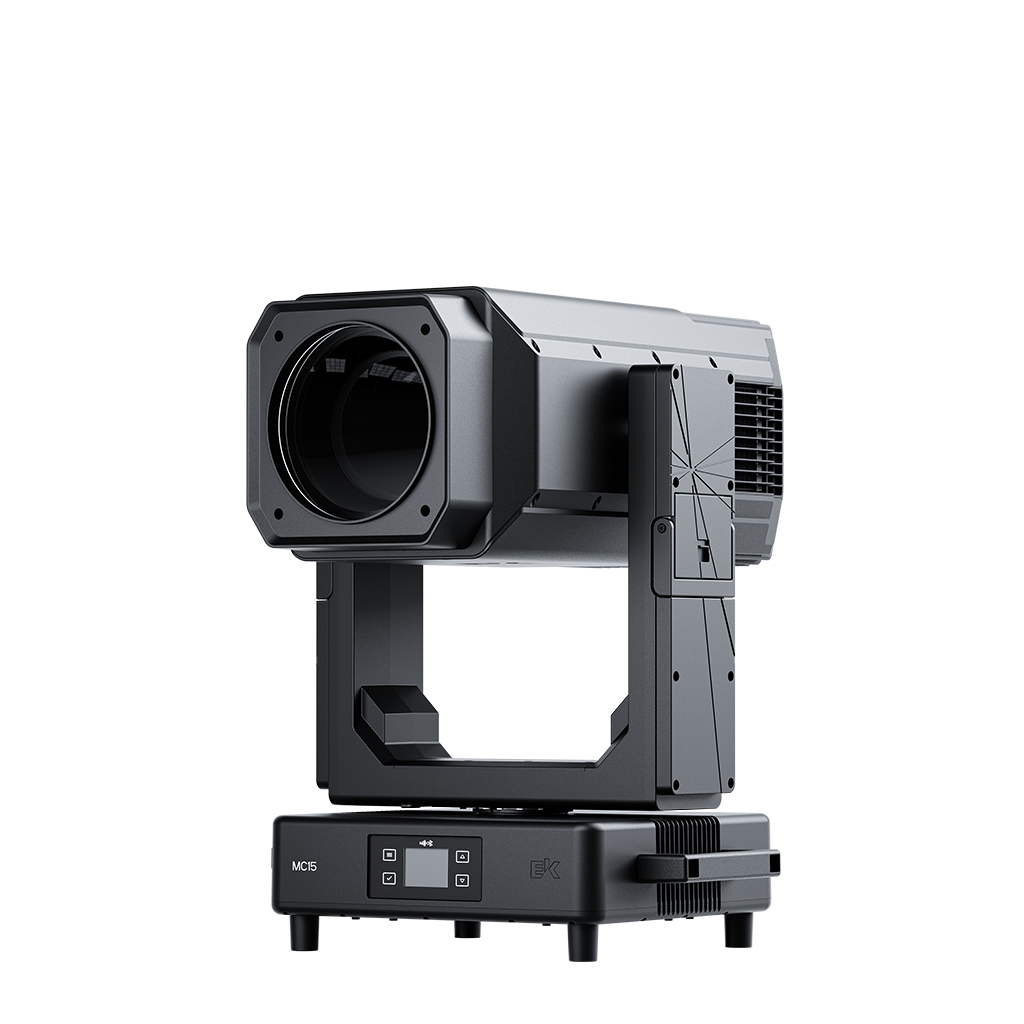

MC15
Welcome to a
universe of color
Perfect color meets perfect silence
MC15’s revolutionary 6-color engine achieves near-perfect color reproduction with unprecedented CRI>98 ratings. Its meticulously selected primaries deliver both saturated hues and true-to-life tones, while whisper-quiet operation and efficient power consumption make it the ultimate choice for demanding theatrical applications.
1500W Full Spectrum LED module
LIGHT SOURCE
Up to 34000 Lm
LUMEN
1800 – 10000k
COLOR TEMPERATURE
4.4° – 52°
ZOOM RANGE
47.8KG
WEIGHT
517 x 365 x 856 mm
DIMENSION
Experience the hexaverse
- Equipped with 200mm large aperture front lens
- Outstanding color rendition: CRI:98, R9:99 TM-30-15rf/rg 95/100, TLCI:99
- Electronic HUE adjustment to meet different needs
- 100%-0 dimming constant CCI value
- Razor sharp shutter framing: dual rotating gobo wheels for elegant shaping
- Weather-resistant IP66 tour-grade construction
- Low power consumption
- Almost imperceptible operating noise, ideal for theatre use
- DMX512 / RDM / sACN / Artnet / Bluetooth / APP / NFC
PHOTOMETRICS
- Light Source
1500W Full Spectrum LED module
- Output
Up to 34,000 Lm
- CRI
CRI:98
R9:99
- Color Temperature
1800K – 10000K
- Lifespan
30,000 hours
- Beam Angle
4.4° – 52°
KEY FEATURES
- Pan
540°
- Tilt
270°
- Color System
RGBCAM+CMY+CTO+HUE+color wheel(4+open)
- Gobo System
Rotating gobo wheel 1(6 gobos+open)
Rotating gobo wheel 2(6 gobos+open)
- Animation
Animation wheel with variable speed
- Framing System
Single blade ±35°, rotatable 180°
- Frost
1°+5° 0 – 100% frost
- Strobe
1~30Hz
- Dimming
Linear dimming / Square curve / Inverse square curve / S-curve dimming + 4 dimming modes / 22Bit
- Prism
Bi-directional variable-speed 4-facet + linear prism
- Slogan Template
Slogan Template
- Framing System
Single blade ±35°, rotatable 180°
- Iris
NA
- Frost
Frost glass
- Prism
Bi-directional, combinable, 8-facet + 4-facet prism
CONTROL
- Protocol
DMX512 / RDM / sACN / Artnet / Bluetooth / APP / NFC
- DMX Channels
50CH / 42CH / 44CH
- Display
2.8 inch TFT display
- Slogan Template
Slogan Template
- Slogan Template
Slogan Template
- Slogan Template
Slogan Template
- Slogan Template
Slogan Template
POWER
- Mains
100 – 240 VAC, 50Hz
- Power Connections
Power In
- Data Connections
DMX In/Out
- Consumption
1850W/230V
- Power Factor
0.98 / 230V
- Ambient
-10°C – 45°C
- Slogan Template
Slogan Template
- Slogan Template
-20°C – 45°C
PHYSICAL
- Dimension
517 x 365 x 856 mm
- Weight
47.8kg
- IP Rating
IP66
- Cooling
Heat pipe and low noise IP fan
- Installation
Sit-flat floor mounting, side hanging and flown mounting
- Slogan Template
Slogan Template
PRODUCT EFFECTS
ACCESSORIES
- Standard
Omega bracket, power cable
DATA SHEET
| PHOTOMETRICS | |
| ·Light Source | 1500W Full Spectrum LED module |
| ·Output | Up to 34,000 Lm |
| ·CRI | CRI:98 R9:99 |
| ·Color Temperature | 1800K - 10000K |
| ·Lifespan | 30,000 hours |
| ·Beam Angle | 4.4°～52° |
| KEY FEATURES | |
| ·Pan | 540° |
| ·Tilt | 270° |
| ·Color System | RGBCAM+CMY+CTO+HUE+color wheel(4+open) |
| ·Gobo System | Rotating gobo wheel 1(6 gobos+open) Rotating gobo wheel 2(6 gobos+open) |
| ·Animation | Animation wheel with variable speed |
| ·Framing System | Single blade ±35°, rotatable 180° |
| ·Frost | 1°+5° 0 - 100% frost |
| ·Strobe | 1~30Hz |
| ·Dimming | Linear dimming / Square curve / Inverse square curve / S-curve dimming + 4 dimming modes / 22Bit |
| ·Prism | Bi-directional variable-speed 4-facet + linear prism |
| CONTROL | |
| ·Protocol | DMX512 / RDM / sACN / Artnet / Bluetooth / APP / NFC |
| ·DMX Channels | 50CH / 42CH / 44CH |
| ·Display | 2.8 inch TFT display |
| POWER | |
| ·Mains | 100 - 240 VAC, 50Hz |
| ·Power Connections | Power In |
| ·Data Connections | DMX In/Out |
| ·Consumption | 1850W/230V |
| ·Power Factor | 0.98/230V |
| ·Ambient | -10℃~45℃ |
| PHYSICAL | |
| ·Dimension | 517 x 365 x 856 mm |
| ·Weight | 47.8kg |
| ·IP Rating | IP66 |
| ·Cooling | Heat pipe and low noise IP fan |
| ·Installation | Sit-flat floor mounting, side hanging and flown mounting |
| ·Standard | Omega bracket, power cable |

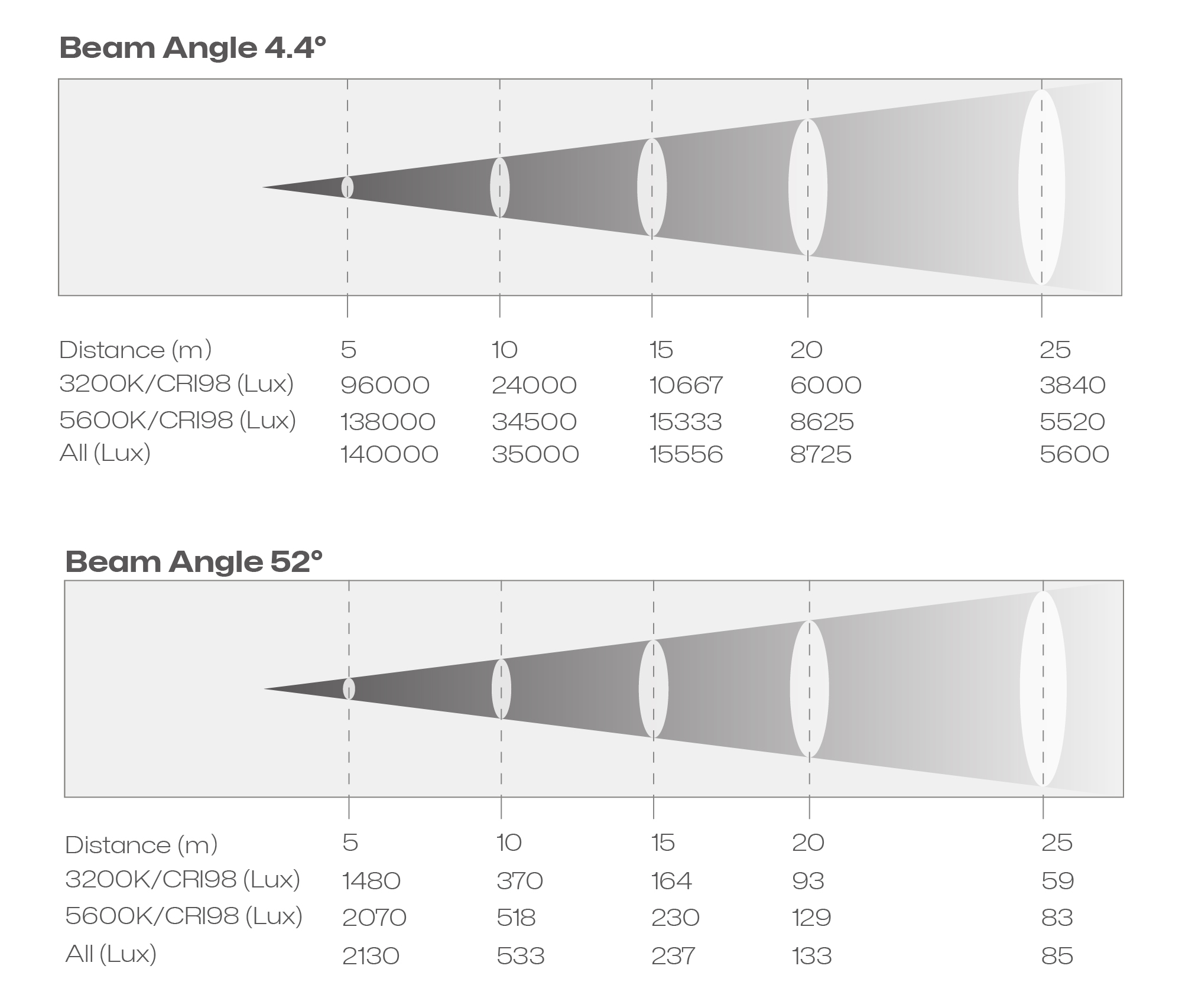

Illumination Diagram

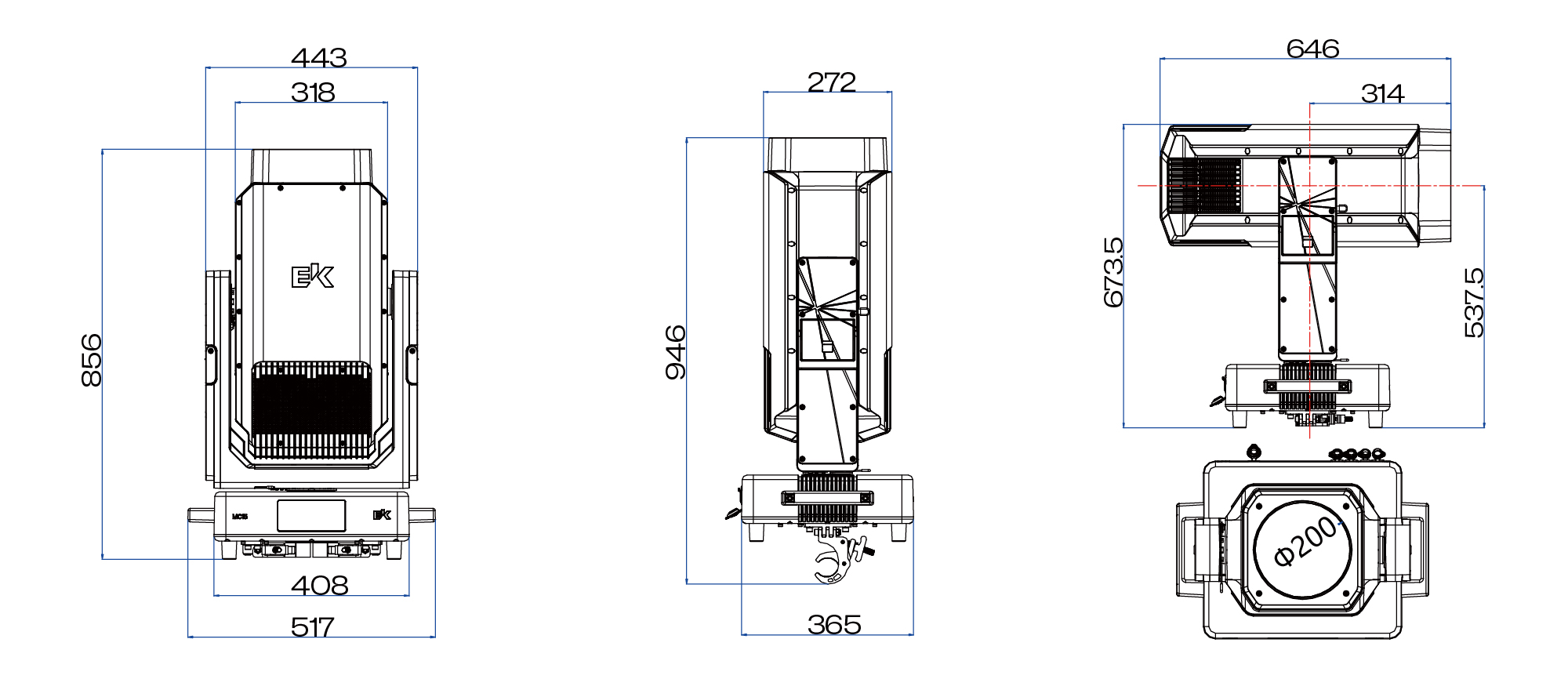

Dimensions

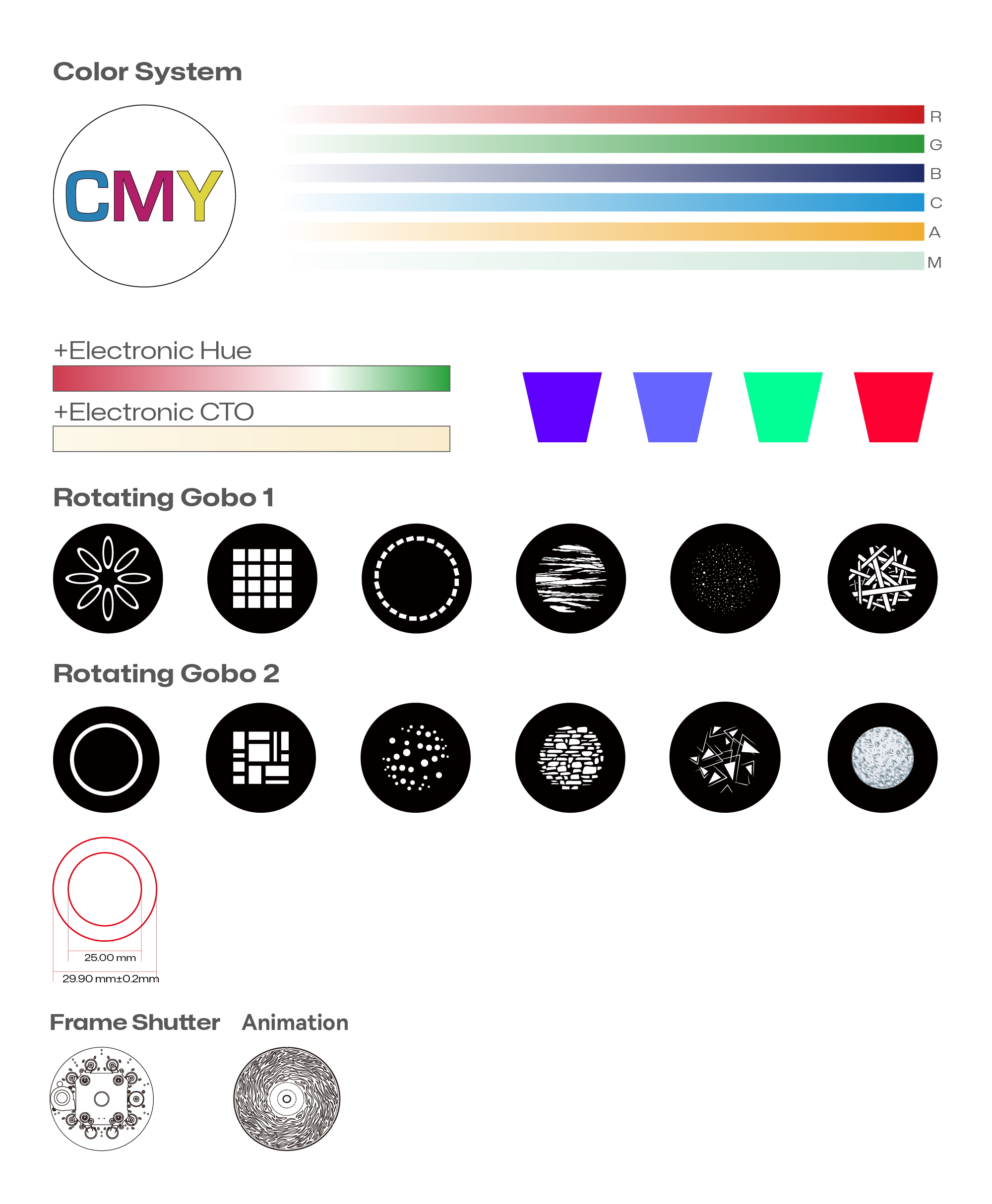

Product Effects
