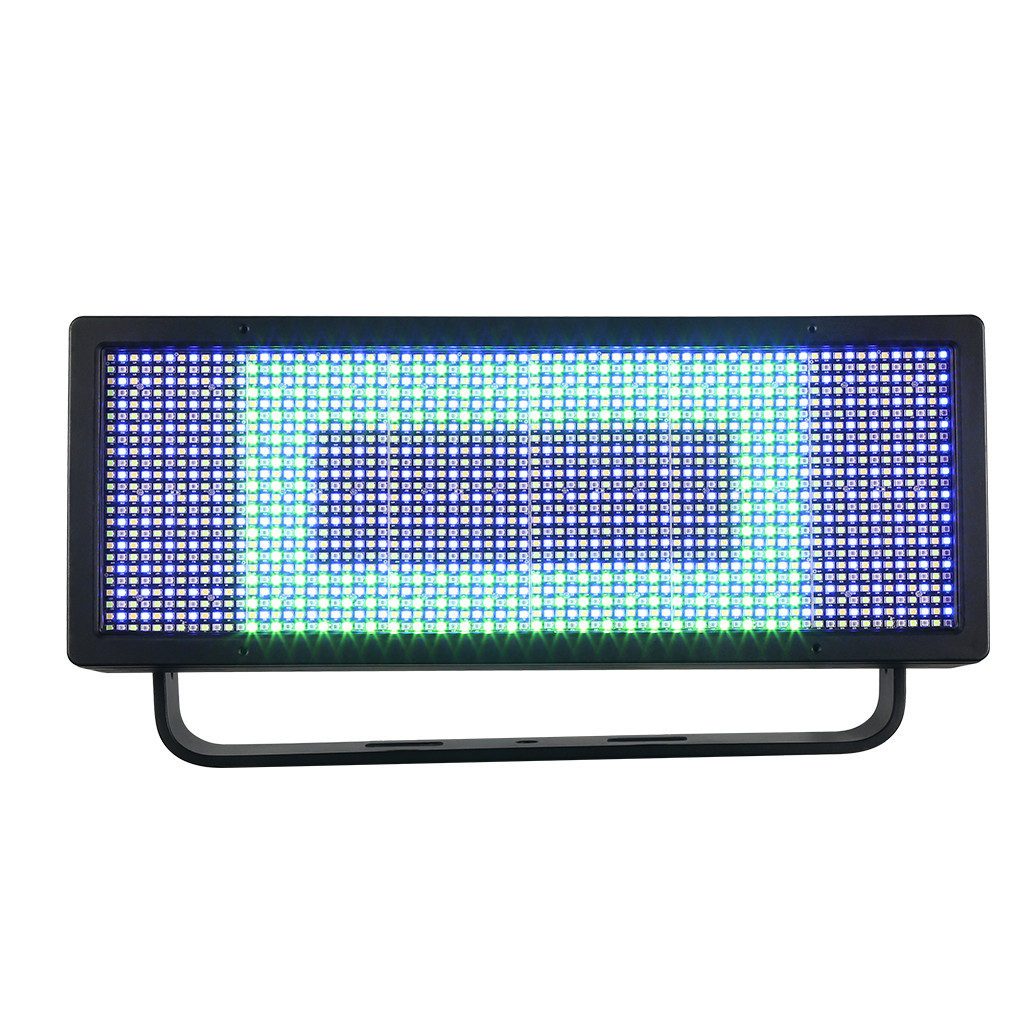

COLLIDER FC
IP66 Strobe Light
PIXEL-MAPPABLE LED STROBE – RGBW / IP66
• The brightest two-layer pixel-mappable strobe on the planet
• 48 individually controllable segments for dynamic effects and visuals
• Two-layer foreground and background colors and effects
• Continuous operation possible due to advanced thermal design
• Stunning selection of pre-programmed macros and special effects
• Doubles as an LED blinder in continuous mode
• IP66-rated tour-grade construction
• DMX 、RDM and Artnet control
1728W RGBW LED
LIGHT SOURCE
180000 lm(peak value)
LUMENS
NA
COLOR TEMPERATURE
98°
ZOOM RANGE
158°
Field Angle
15KG
WEIGHT
468 x 179 x 268 mm
DIMENSION
DATA SHEET
| Photometrics | |
| ·Light Source | 1728W RGBW LED |
| ·Output | 180000 lm(peak value) |
| ·Beam Angle | 98° |
| ·Field Angle | 158° |
| Key Features | |

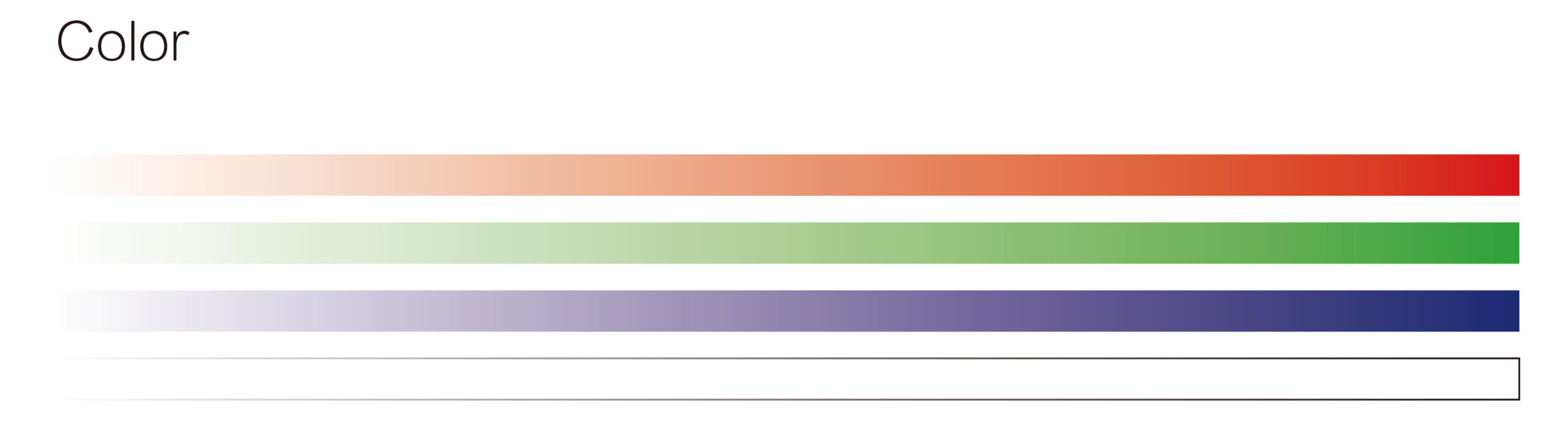

| ·Color | RGBW |
| ·Pixel Matrix | 4X12 |
| ·Strobe | 0~30Hz |
| ·Dimming | 4 dimming curves |
| Control | |
| ·Protocol | DMX512 / RDM / Artnet |
| ·Onboard Menu | 220 x 176 TFT display |
| Power | |
| ·Mains | 100V~240V, 50/60 Hz |
| ·Power connections | IP65 PowerCon In/Out, up to 2 units |
| ·Data connections | IP65 3pin XLR In/Out for DMX, IP65 EtherCon for ArtNet |
| ·Consumption | 590W(full on), 1500W(instant peak value) |
| ·Ambient | -20℃~45℃ |
| Physical | |
| ·Dimensions | 468 x 179 x 268 mm |
| ·Weight | 15KG |
| ·Cooling | Cooling motor with variable speed |
| ·Housing | Diecast aluminium, Matt black |
| ·IP rating | IP66 |

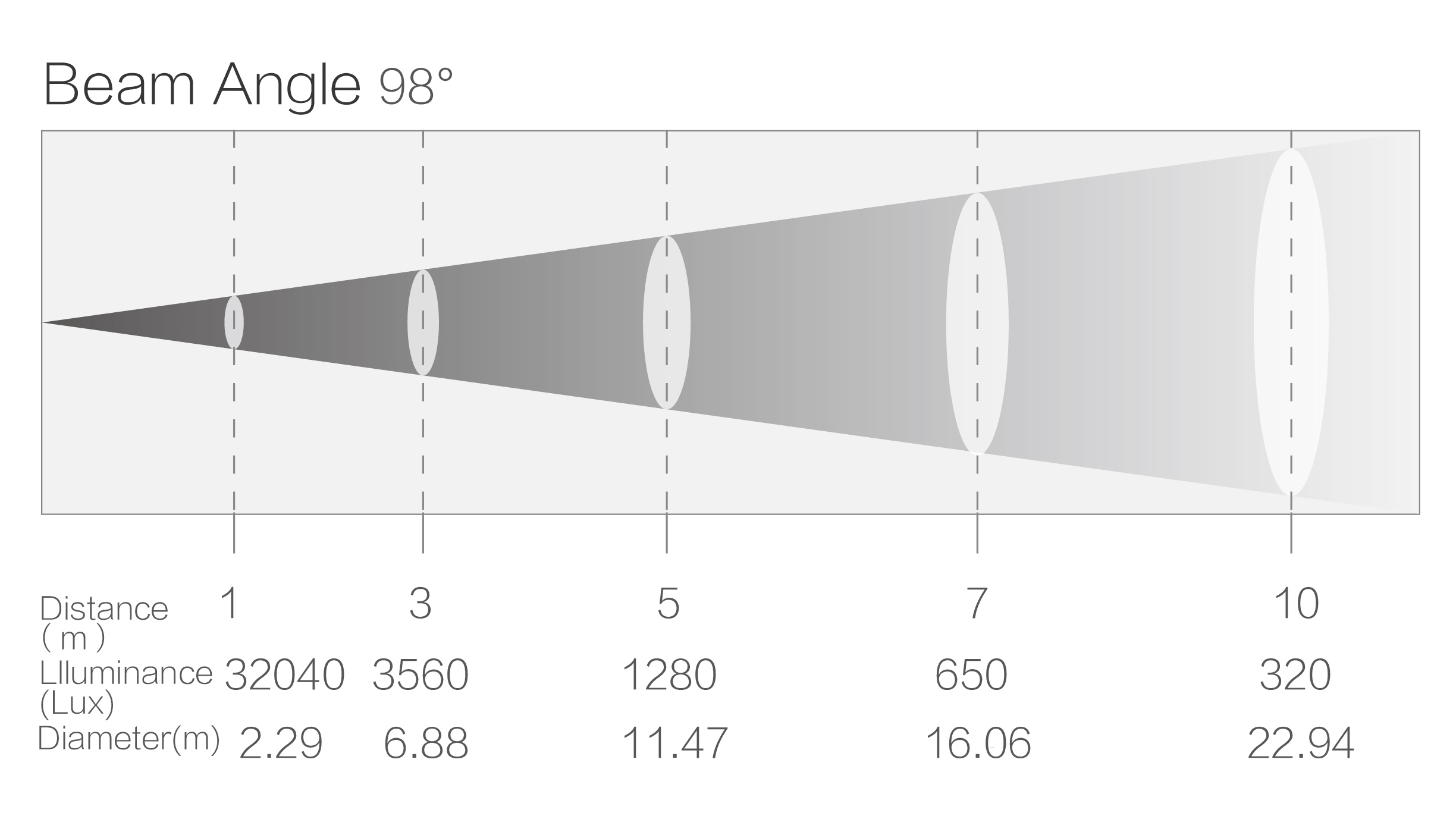

ILLUMINATION DIAGRAM

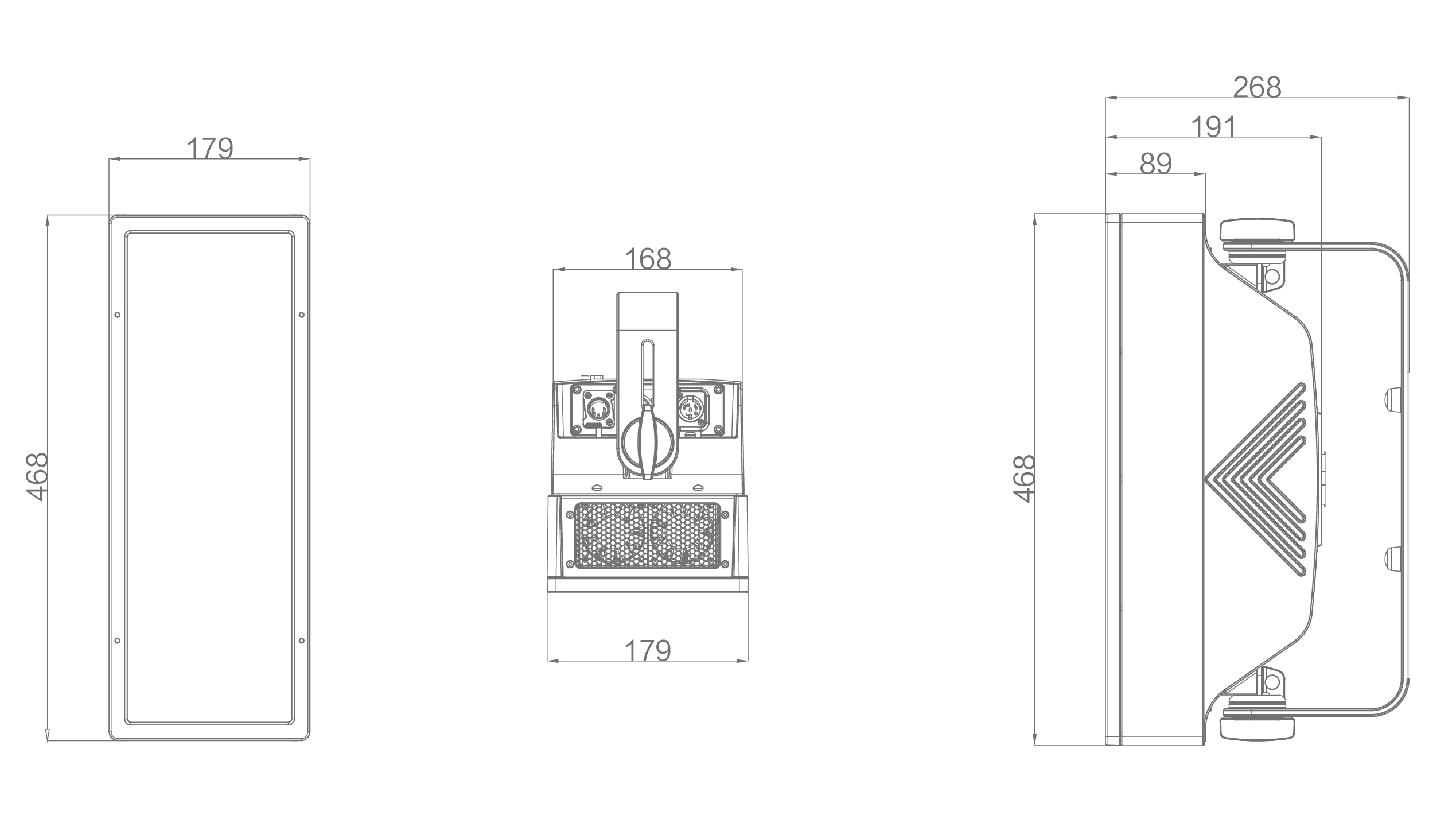

DIMENSIONS
PRODUCT EFFECTS

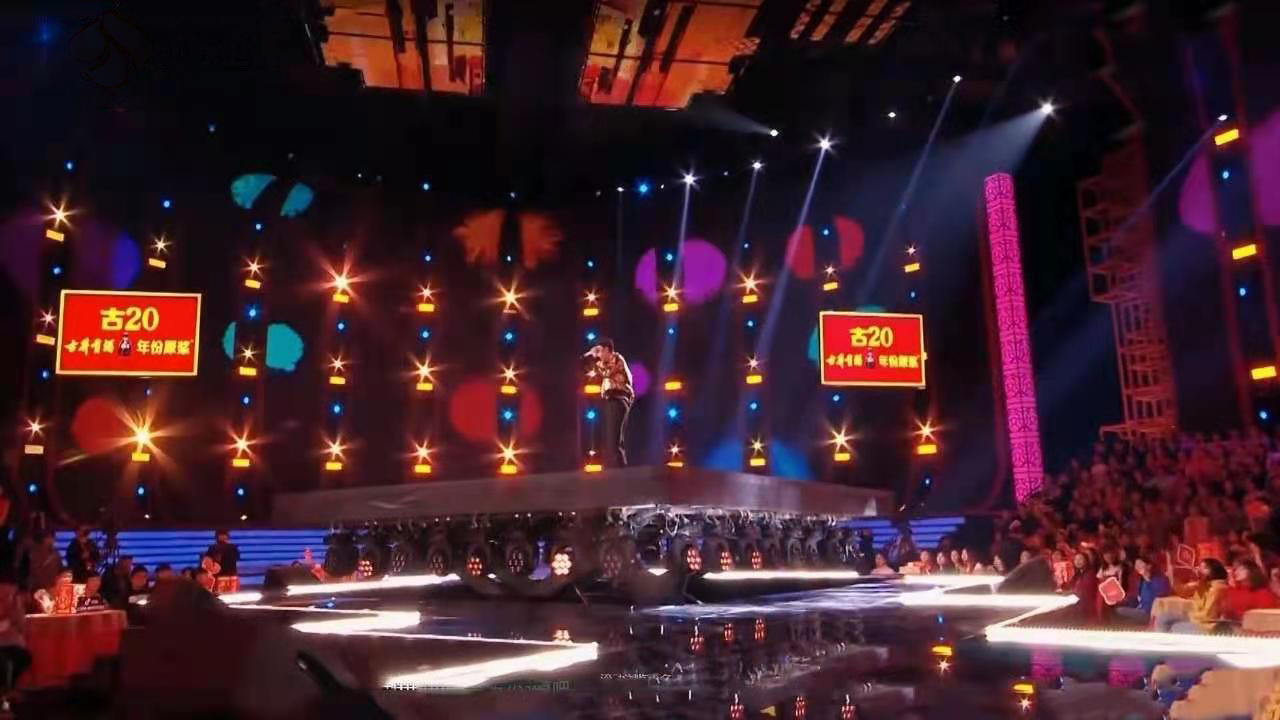

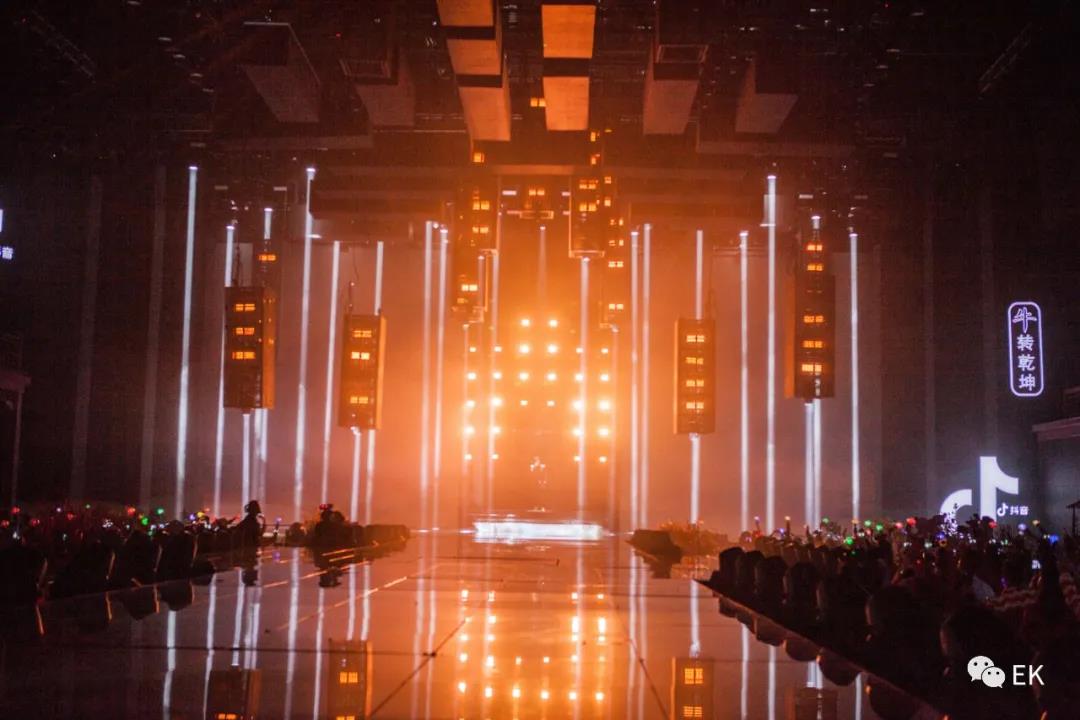

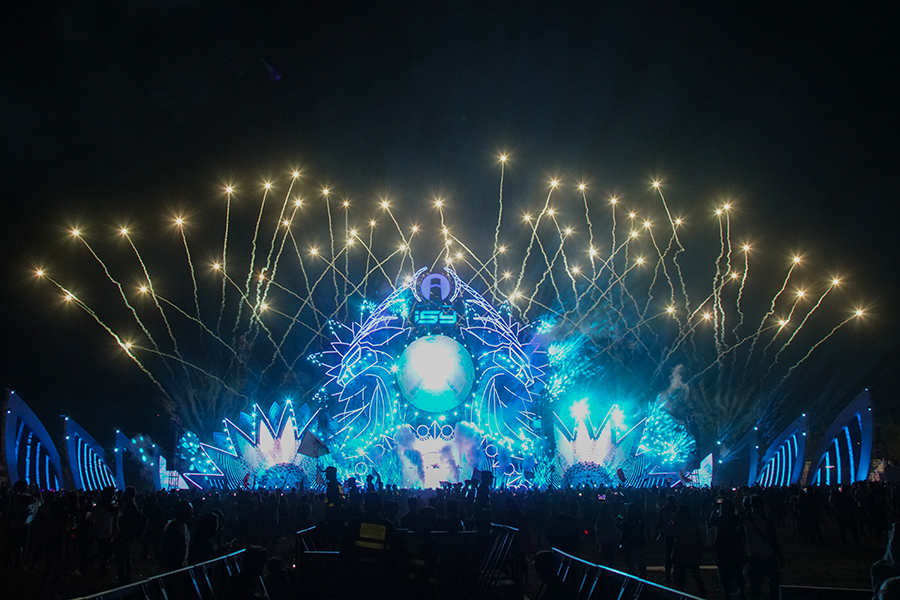

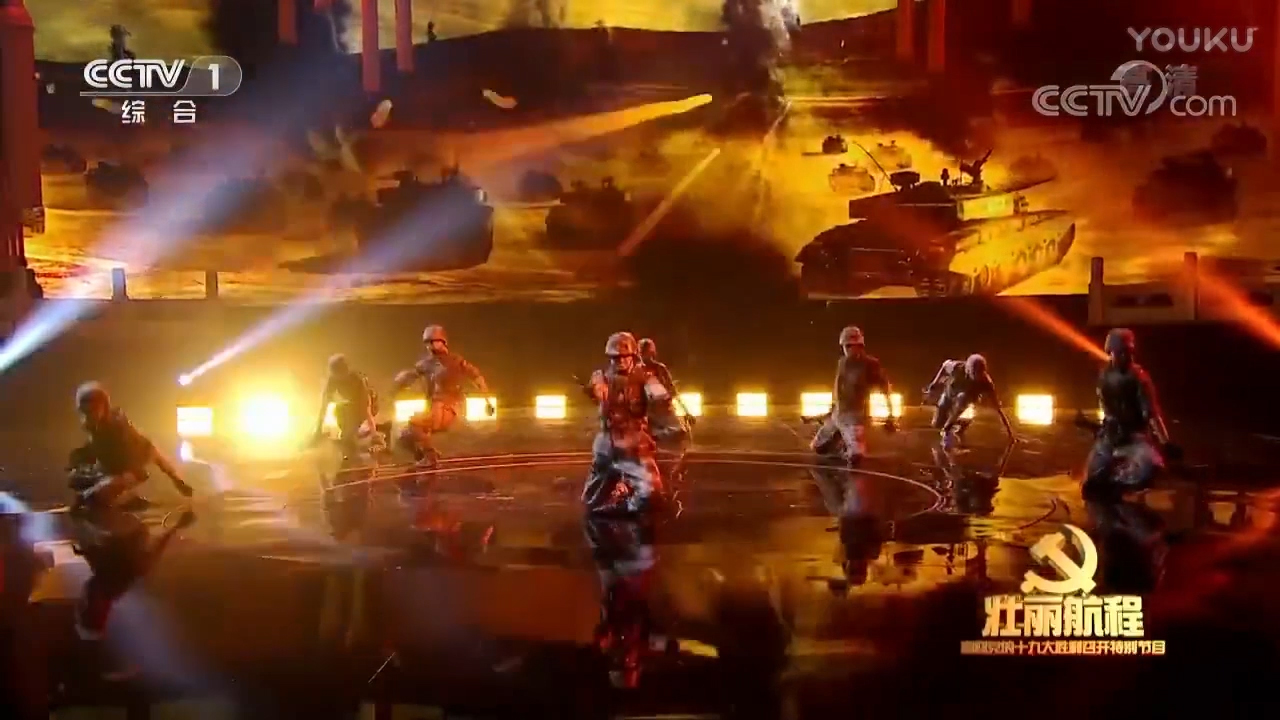

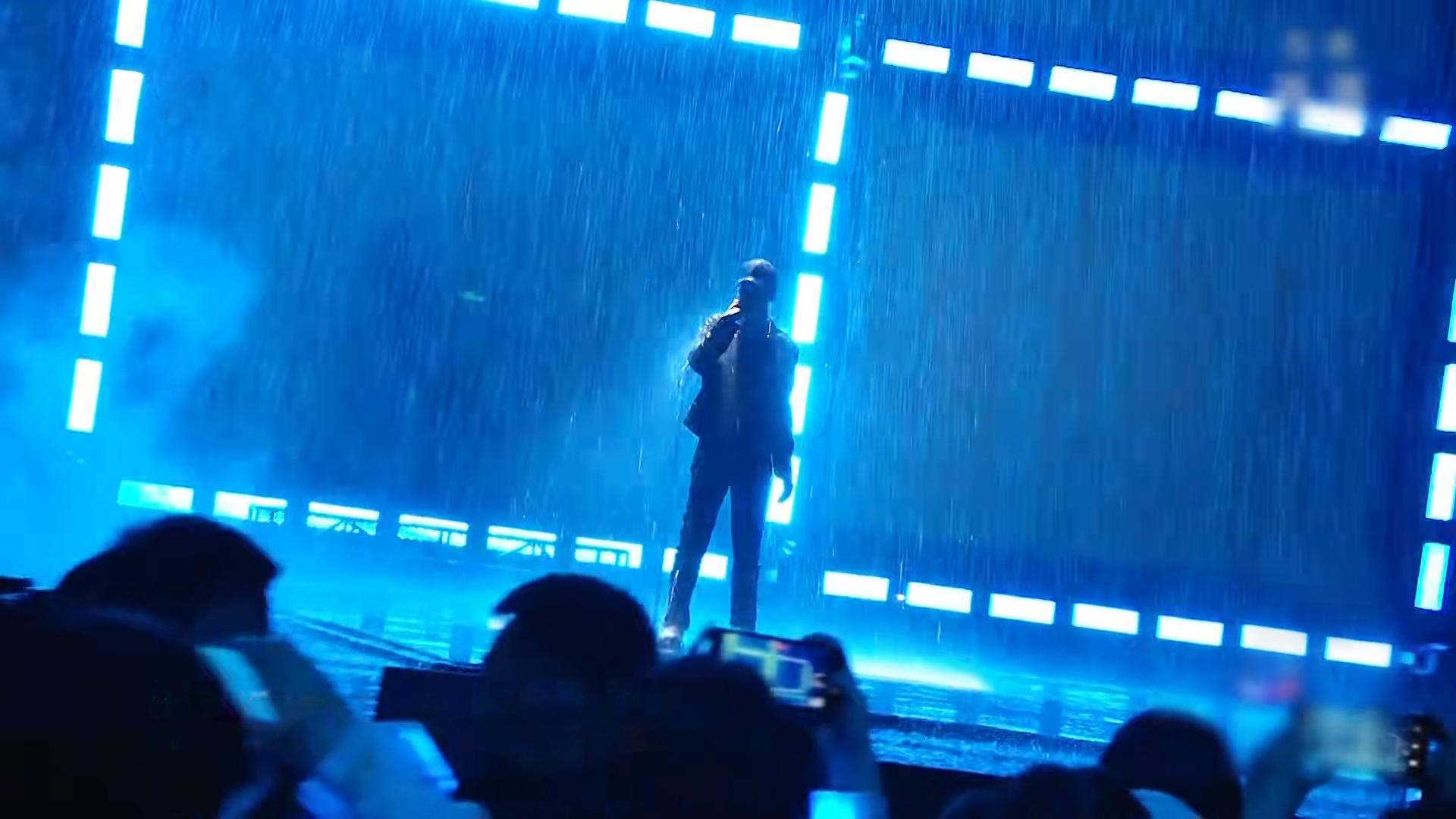

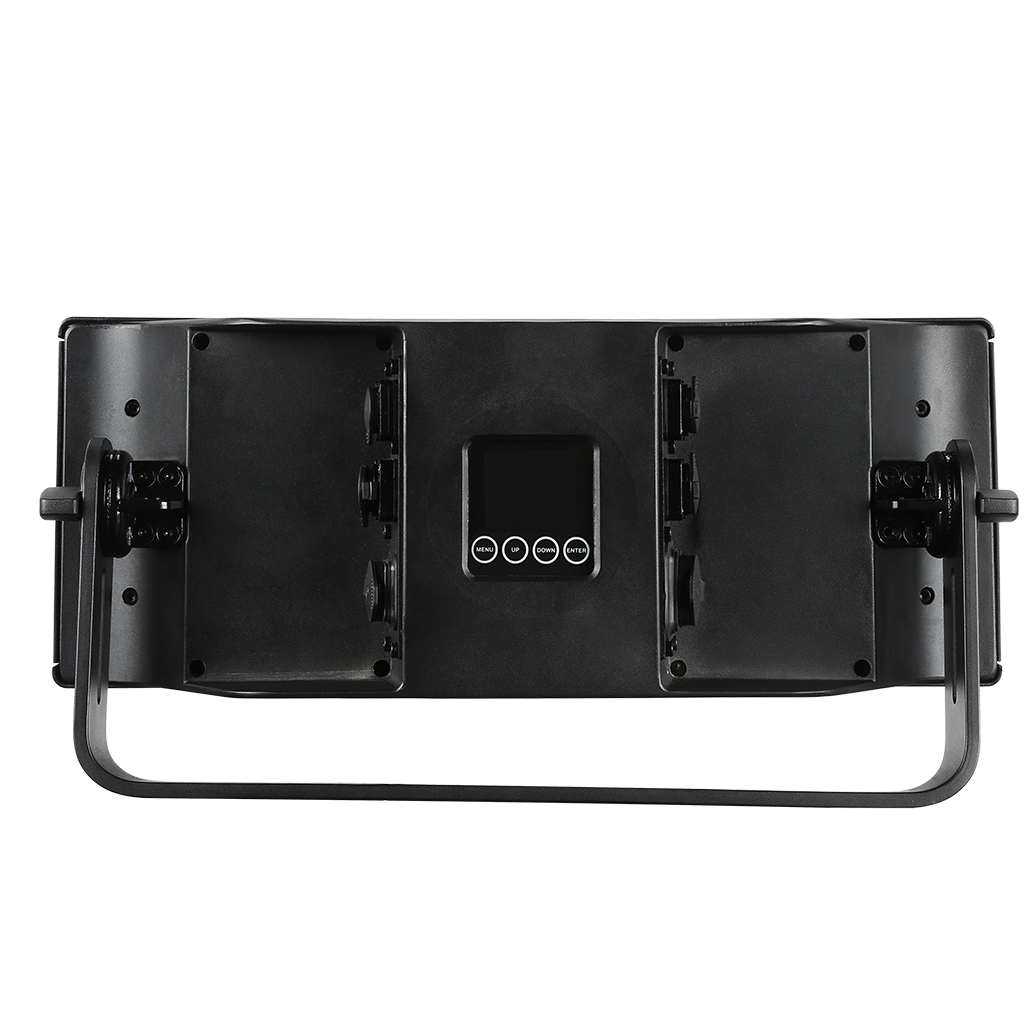

IMAGE GALLERY
