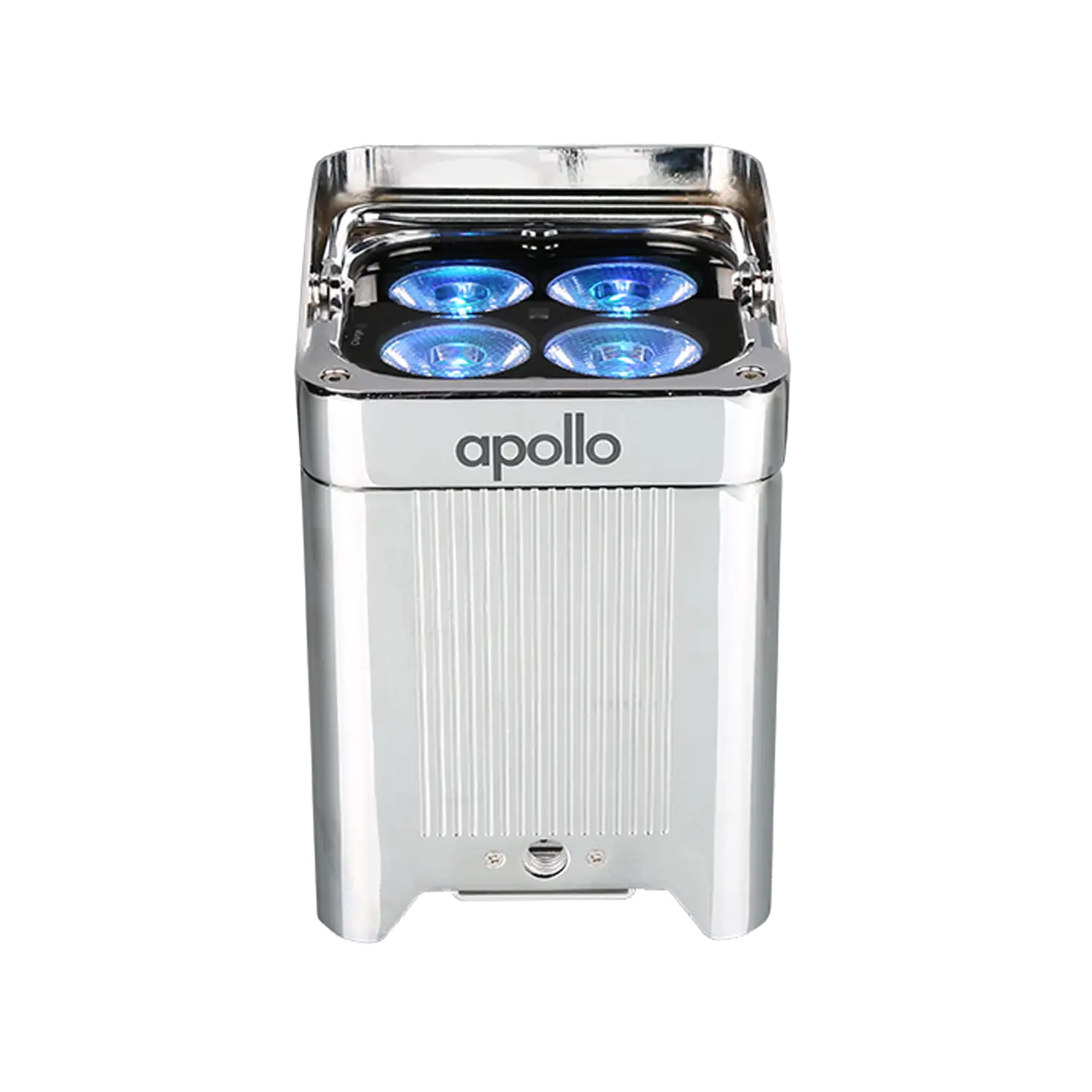

Apollo 6PACK
LED Wireless Battery Wash Light
LED WIRELESS BATTERY UPLIGHT SYSTEM
(6 x APOLLO units + 1 x Charging case)
• 4 x 10W RGBW (or RGBA) LED
• 8 hours continuous battery-powered operation at full output,
• 20 hours at single color
• Onboard W-DMX receiver
• Ultra-linear dimming technology for flawless color mixing
• IP66: Designed for both indoor and outdoor use
• Charging station in rugged touring case holds 6 units
• Threaded receiver for clamp mounting
• Wireless DMX, Manual, IR control, Koala App
40W RGBW LED
LIGHT SOURCE
1160 lux @5m
Illuminance
NA
COLOR TEMPERATURE
11°
BEAM ANGLE
19°
Field Angle
3.7 KG
WEIGHT
202 x145 x 138 mm
DIMENSION
DATA SHEET
| Photometrics | |
| ·Light Source | 40W RGBW LED |
| ·Illuminance (lumens) | 1160 lux @5m |
| ·Beam Angle | 11° |
| ·Field Angle | 19° |
| Key Features | |
| ·Color | RGBW/RGBA |
| ·Maximum running time(Full on) | up to 8 hrs |
| ·Maximum running time(Monochrome) | up to 20 hrs |
| ·Charging time | 6 hrs |
| ·Strobe | 0-30 Hz |
| ·Dimming | 4 dimming curves |
| Control | |
| ·Protocol | W-DMX |
| ·DMX Channels | 4 / 6 / 10 / HSV / HSI |
| ·Onboared Menu | OLED display with 4 touched buttons |
| Power | |
| ·Mains | 100 - 240 VAC, 50/60 Hz |
| ·Power connections | Charging case for 6 units |
| ·Battery | 16.8V, 11000 mAh |
| ·Consumption | 45W |
| ·Ambient | -20℃~45℃ |
| Physical | |
| ·Dimensions | 202 x145 x 138 mm |
| ·Weight | 3.7 KG |
| ·Cooling | Passive |
| ·Finish | Diecast aluminum, chromium plating, black |
| ·IP rating | IP 66 |
| Misc / Options | |
| ·Charging case | Charging for 6 units |
| ·Infrared remote control | IR6 |

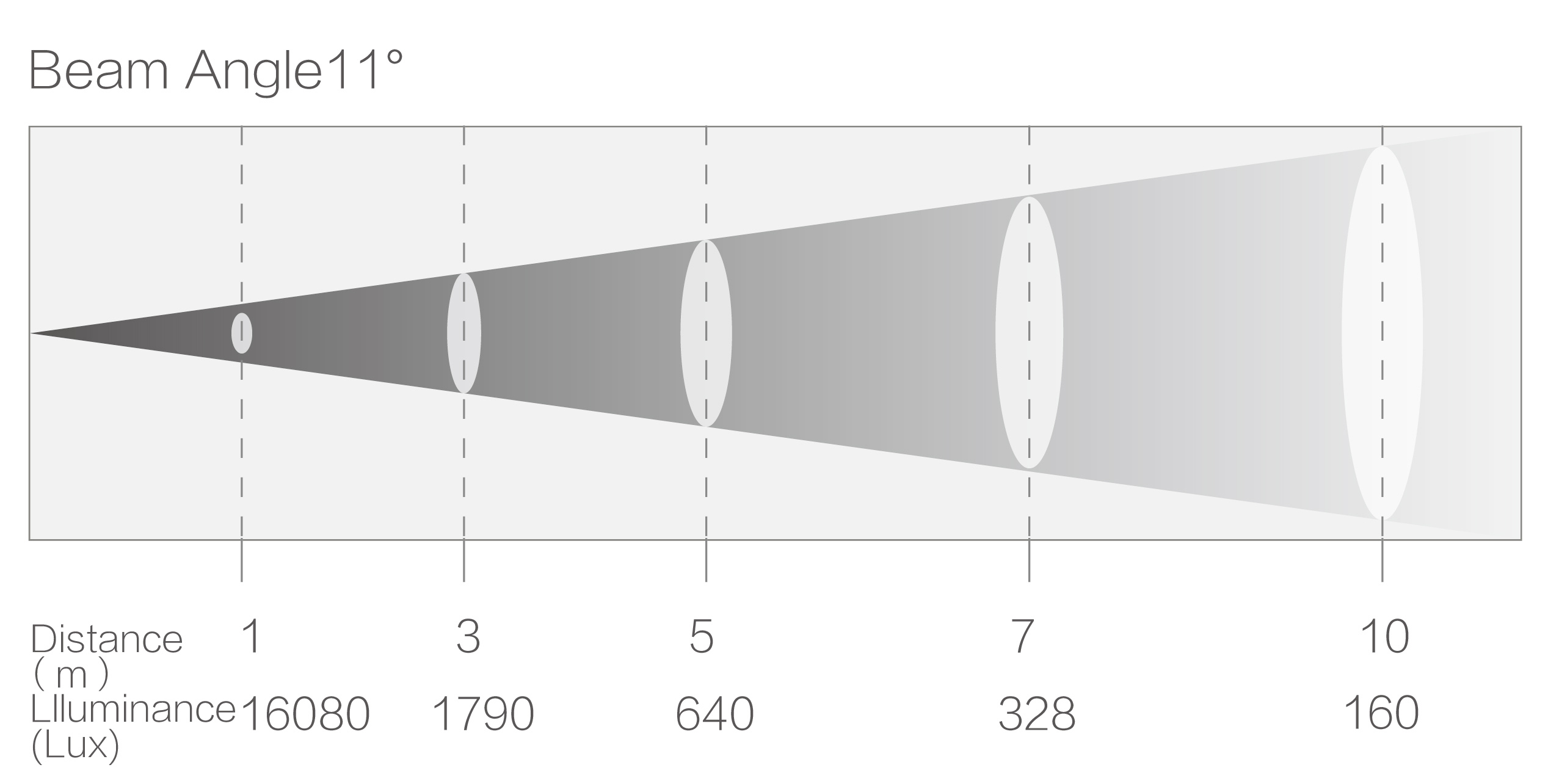

ILLUMINATION DIAGRAM

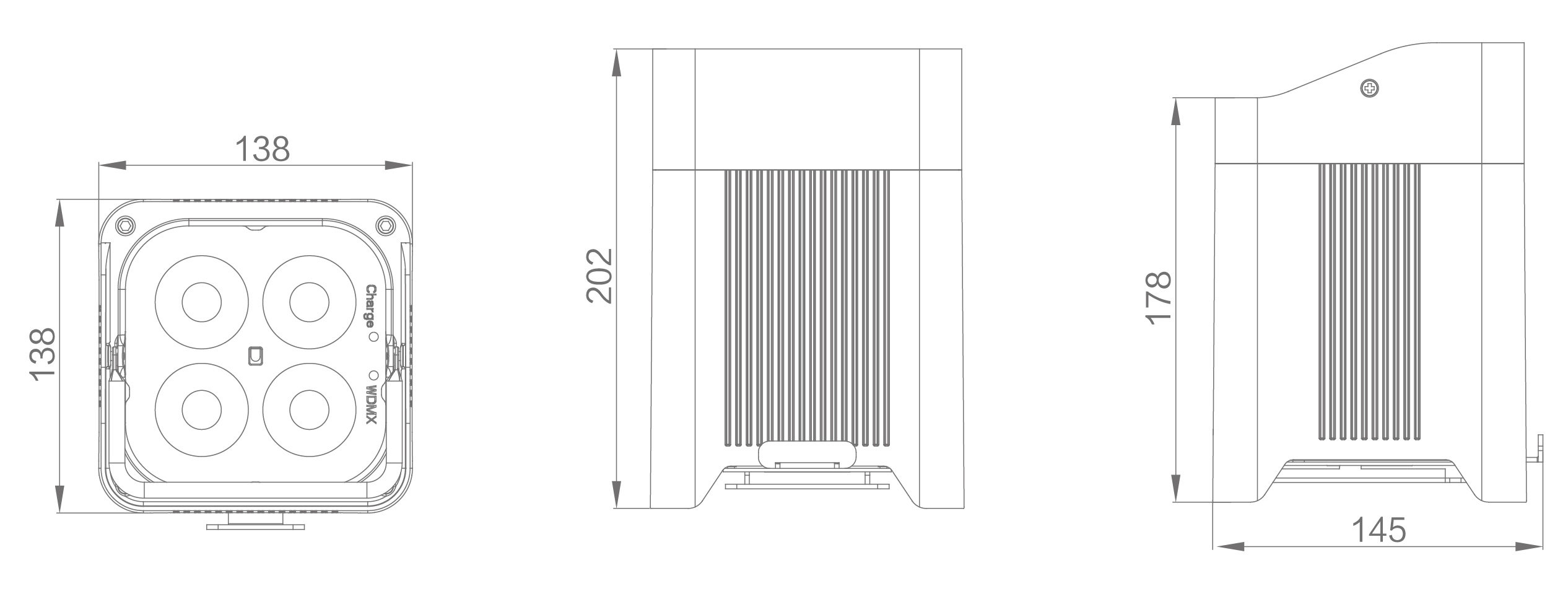

DIMENSIONS
PRODUCT EFFECTS
IMAGE GALLERY
SELECT THE PERFECT LUMINAIRE FOR YOU
